BeagleBoard.org BeagleBone Robotics Cape

BeagleBone® Robotics Cape

Purchase
at

Element14
Renaissance Robotics

What is BeagleBone® Robotics Cape?

Everything needed to bring the power of BeagleBone® to mobile robotics with almost no setup time. Loaded with innovative features such as a 9-Axis IMU, Barometer, H-Bridge DC motor controllers, Quadrature encoder, and more.  Supported by a comprehensive software library, BeagleBone® Robotics Cape is designed to effortlessly take your robotics concepts from design to reality.  The array of on-board sensors and controllers plus even more expansion options gives you everything you need for your robotics project.

Board Features
  • 9-Axis IMU: Invensense MPU-9250
  • Barometer: Bosch BMP280
  • 4 x H-Bridge DC motor controllers
  • 8-Channel Servo/ESC output
  • 5V 2A switching regulator for robust power supply (8V -18V input voltage)
  • 6V 4A regulated power supply to protect servos
  • Charges a 2-cell LiPo battery
  • 4 Quadrature encoder inputs
  • GPS input with EM-406/EM-506 style UART connector
  • Headers for I2C, UART, SPI, ADC, PWM, GPIO connectivity
  • Supports DSM2 and DSMX satellite radios
Resources



Robotics Cape Hardware Files

Robot Control Library

BeagleBone® Cape Interface Specification

Compatible with:

Related Products

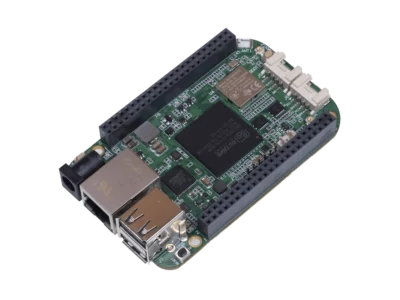

SeeedStudio BeagleBone® Green Gateway Get more details on SeeedStudio BeagleBone® Green Gateway

What is SeeedStudio BeagleBone® Green Gateway? Seeed Studio BeagleBone® Green Gateway is a low cost, open-source, community supported development platform for developers and hobbyists. It is a joint effort by BeagleBoard.org and Seeed Studio. It is based on the classical open-source hardware design of BeagleBone® Black and developed into this differentiated version. The Seeed Studio […]

SanCloud BeagleBone® Enhanced Industrial Get more details on SanCloud BeagleBone® Enhanced Industrial
SanCloud Industrial

This Industrial temperature rated board by SanCloud takes the BeagleBone Black into industrial applications with many additional features.  With upgraded Ethernet speed (gigabit), 1G DDR3 RAM and optional features including CANBus.

SanCloud BeagleBone® Enhanced WiFi 1G Get more details on SanCloud BeagleBone® Enhanced WiFi 1G

With 1 Gig of commercial grade DDR3 RAM, the SanCloud BeagleBone® Enhanced WiFi 1G, brings twice the memory and on board sensors to your projects.

BeagleBone® Black Get more details on BeagleBone® Black

1GHz Single-Board Linux Computer based on ARM Cortex-A8 with PRU microcontrollers and tons of features like Ethernet and HDMI – credit card sized with over a decade of support, software and materials behind it making it ready for any application

BeagleBone® AI Get more details on BeagleBone® AI
BeagleBone AI

Filling the gap between small SBCs and more powerful industrial computers, BeagleBone® AI, based on the AM5729, makes it easy to explore how artificial intelligence can be used in every day life. Powerful compute performance and software support.

BeagleBone® Blue Get more details on BeagleBone® Blue

An all-in-one Linux-based robotics computer with compatibility to BeagleBone® Black and tons of integration including Wi-Fi, Bluetooth, IMU/barometer, power regulation, H-Bridges, motor connectors and more. Robotics made streamlined, affordable and fun.

BeagleBone® Black Wireless Get more details on BeagleBone® Black Wireless
BeagleBoneBlack Wireless

With built-in 802.11 b/g/n 2.4GHz Wi-Fi and Bluetooth wireless networking capability, the popular open source BeagleBone® Black computer goes anywhere. Take your IoT and IIoT projects to the next level with a full Linux computer the size of a mint tin.

BeagleBone® Black Industrial Get more details on BeagleBone® Black Industrial
BeagleBone® Industrial

Answer the need for an industrial rated single board computer with extended temperature range with the same functionality as the popular BeagleBone Black®

BeagleBone® Get more details on BeagleBone®
BeagleBone®

The original credit-card-sized BeagleBone® Linux computer that connects to the Internet and runs software such as Android 4.0 and Ubuntu.

SanCloud BeagleBone® Enhanced Extended WiFi Get more details on SanCloud BeagleBone® Enhanced Extended WiFi
SanCloud BeagleBone Enhanced Extended WiFi

Supporting an extended temperature range, upgraded Ethernet, wireless and extra USB port capability, the SanCloud BeagleBone® Enhanced Extended WiFi brings the extras you need for IIoT applications

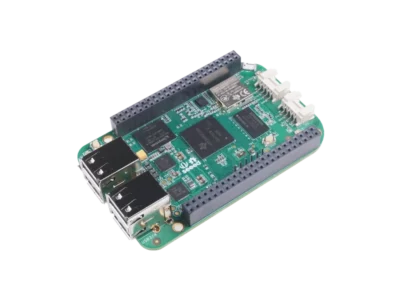

SeeedStudio BeagleBone® Green Wireless Get more details on SeeedStudio BeagleBone® Green Wireless
SeeedStudio BeagleBone® Green Wireless (BBGW)

IoT made easy with WiFi/Bluetooth and a variety of sensors attached with Grove Connectors from SeeedStudio using this differentiated version of the open-source BeagleBone® Black hardware design

SeeedStudio BeagleBone® Green Get more details on SeeedStudio BeagleBone® Green

Leverage a large family of sensors easily via Grove Connectors from SeeedStudio using this differentiated version of the open-source BeagleBone® Black hardware design

Projects

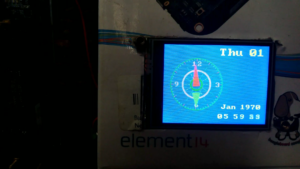

BeagleBone Black desk clock using PRU to ILI9341

BeagleBone Black desk clock using PRU to ILI9341
ArduPilot Rover and the BBBlue (2021)

ArduPilot Rover and the BBBlue (2021)
Beaglebone “Smart” Christmas Wreath

Beaglebone “Smart” Christmas Wreath
BBIO in Python

BBIO in Python

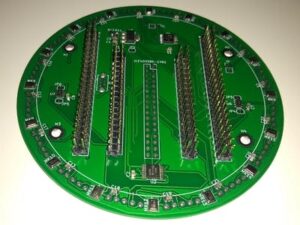

16 Microphone Array Using PocketBeagle
