UPDATE #2: Replicape Rev B is now launched on Kickstarter for only $99!
UPDATE: Replicape is now available for purchase!

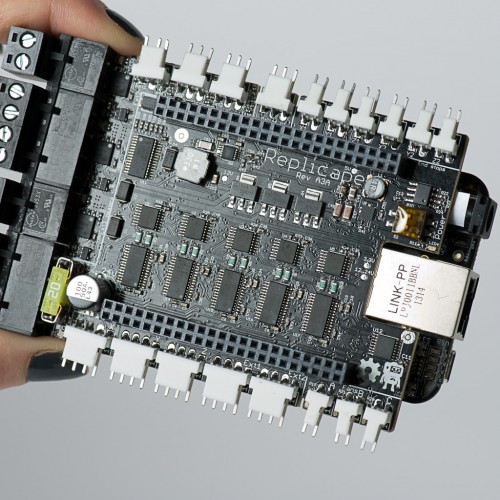

Replicape is a 3D printer cape for BeagleBone.
– 5 stepper motors (2.5A DRV8825) (X, Y, Z, Ext1, Ext2)
– 3 high power MOSFETs (PWM controlled) for 2 extruders and 1 HPB. (12..24V)
– 3 medium power MOSFETs (PWM controlled) for up to 3 fans/LED strips. (12V)
– 3 analog input ports for thermistors. noise-filtered inputs and option for shielding
– 6 inputs for end stops (X, Y, Z).
– 1 bus for Dallas 1W temperature sensor for monitoring the cold end. Many sensors can be added to ne bus.
– Programmable current limits on steppers motor drivers (SMD). No need to manually adjust a pot meter.
– Microstepping individually programmable for each SMD from 1 to 32.
– All steppers are controlled by the Programmable Realtime Unit (PRU) for hard real time operation.
– Option for stackable LCD cape (LCD3). HDMI compatible LCD on the way.
– Single 12 to 24V PSU, fans are still 12V.
– Comptabile with BeagleBone and BeagleBone Black.
– Open source hard ware and software.
– Software written in Python for maintainability and hackability.
