Bipolar Stepper Motor with BeagleBone Blue

BeagleBone Blue's DC motor drivers can be used to drive bipolar stepper motors too! Pair them up with a little code for open loop control.

Categories: Intermediate

Modify unipolar stepper motor to bipolar

I followed a
blog article
on how to modify this unipolar stepper to be bipolar, because BeagleBone Blue has built-in H-bridges.

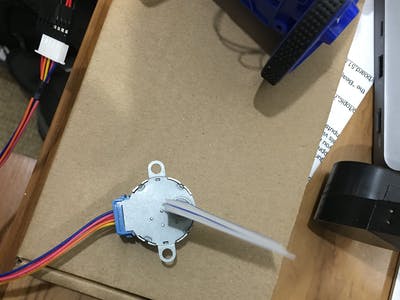

Cut the trace in the middle

Wiring

I used an EduMIP, which has DC motors on M2 and M3, so I grabbed M1 and M4.

I used a wiring housing to line up the wires to the stepper motor header.

  • M1+: Pink (2)
  • M1-: Orange (4)
  • M4+: Yellow (3)
  • M4-: Blue (1)
  • center-tap (unused): Red (5)

Wire M1 to pins 2/4, M4to pins 3/1Find M1 and M4 next to where the EduMIP motors connect

Software

git clone https://gist.github.com/jadonk/1da9f20423c2e6c8a954eca1a3e8f7f2

cd 1da9f20423c2e6c8a954eca1a3e8f7f2

make

./stepper_example
